7 Bar Filter & Membrane Housing 1/8 or 1/4 – FM121

Materials PTFE

Pressure 7 Bar

Ports 1/8” or 1/4”

Element 12.57.

Membrane MT.33.

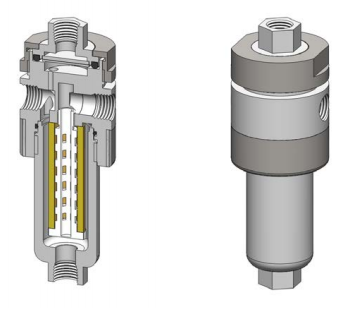

FM121 combination housings have a coalescing filter element and a PTFE membrane in a single unit. The porous PTFE membrane is supported by a sintered porous PTFE disc on the outlet side. The wet sample gas enters the inlet port and then through the coalescing element to remove the bulk of the liquid and solid particles and then to the membrane. Any liquid in the gas sample will flow to the drain port. This port can also be used as a bypass function for the main flow. Standard housings have NPT ports and include Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available.

Filter & Membrane Housing
  Port Size Drain/Bypass  Max
Ordering Information NPT Port W/P
Inch Inch Bar
FM121-111 1/8 1/8 7
FM121-221 1/4 1/4 7
