35 Bar Membrane Housing 1/4 or 1/2 – STML304
Materials 316L Stainless Steel
Pressure 35 Bar
Ports 1/4” or 1/2”
Membrane 2x MT.89.

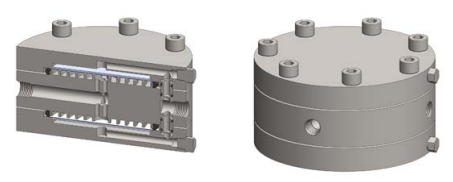

STML304 membrane housings use two porous PTFE membranes, which are supported by sintered porous stainless steel discs on the outlet side. The housing is designed to separate two liquid phases and a special flow path increases the contact time against the membrane face to increase the flow rate. The housing design allows the membranes to be changed without disconnection the port fittings. Standard housings have NPT ports and include Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75.
Membrane Housing | |||
Port Size | Drain/Bypass | Max | |
Ordering Information | NPT | Port | W/P |
Inch | Inch | Bar | |
STML304-221 | 1/4 | 1/4 | 35 |
STML304-441 | 1/2 | 1/2 | 35 |
