200 Bar Membrane Housing 1/8 or 1/4

Materials 316L Stainless Steel Pressure 200 Bar Ports 1/8” or 1/4” Membrane MT.33

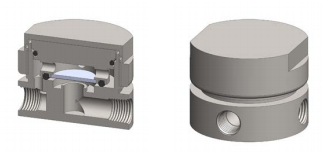

SM106 membrane housings use a porous PTFE membrane, which is supported by a sintered porous stainless steel disc on the outlet side. Any liquid in the gas sample will flow to the drain port. This port can also be used as a bypass function for the main flow. The housing design allows a quick change of the membrane as all the line connections are arranged in the body of the housing and the threaded cap means no tools are required for access. Standard housings have NPT ports and include Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75.

Membrane Housing
  Port Size Drain/Bypass Max
Ordering Information NPT Port W/P
Inch Inch Bar
SM106-111 1/8 1/8 200
SM106-111-LB 1/8 1/8 200
SM106-221 1/4 1/4 200
SM106-221-LB 1/4 1/4 200
