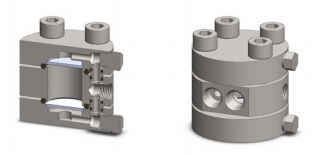

200 Bar Cyclone Membrane Housing 1/8 or 1/4

Materials 316L Stainless Steel Pressure 200 Bar Ports 1/8” or 1/4" Membrane 2x MT.33.

The STM106 membrane housings use two porous PTFE membranes, which are supported by sintered porous stainless steel discs on the outlet side. Any liquid in the gas sample will flow to the drain port. This port can also be used as a bypass function for the main flow. The housing design allows the membranes to be changed without disconnection the port fittings. Standard housings have NPT ports and include Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75

Cyclone Membrane Housing
  Inlet/Bypass Port Size Outlet Max
Ordering Information NPT Port W/P
Inch Inch Bar
STM106-111 1/8 1/8 200
STM106-211 1/4 1/8 200
