100 Bar Filter & Membrane Housing 1/4 or 1/2 – SM235

Materials 316L Stainless Steel

Pressure 100 Bar

Ports 1/4” or 1/2”

Element 25.178

Membrane MT.61

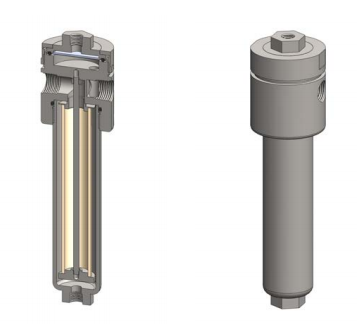

SM235 combination housings have a coalescing filter element and a PTFE membrane in a single unit. The porous PTFE membrane is supported by a sintered porous stainless steel disc on the outlet side. The wet sample gas enters the inlet port and then through the coalescing element to remove the bulk of the liquid and solid particles and then to the membrane. Any liquid in the gas sample will flow to the drain port. This port can also be used as a bypass function for the main flow. Standard housings have NPT ports and include Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75.

Filter & Membrane Housing
  Port Size Drain/Bypass  Max
Ordering Information NPT Port W/P
Inch Inch Bar
SM235-221 1/4 1/4 100
SM235-421 1/2 1/4 100
