100 or 350 Bar Fast Loop (Bypass) Filter Housing 1/4 to 1″

Materials 316L Stainless Steel Pressure 100 or 350 Bar Ports 1/4” to 1” Element 12.32.?to 51.230.

The SF series housings are designed for fast loop and bypass applications. The internal volume is kept to a minimum for a fast response time. The straight-through flow design gives a flushes the filter elements to increase the service life. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC where required. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc.

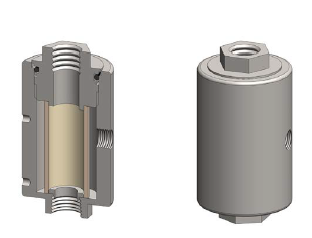

Fast Loop (Bypass) Filter Housing
  Port Size Sample Outlet
Ordering Information NPT NPT W/P
Inch Inch Bar
SF117-221 1/4 1/4 350
SF127-221 1/4 1/4 350
SF215-421 1/2 1/4 100
SF235-421 1/2 1/4 100
SF425-421 1 1/4 100
