100 Bar Cyclone Disc Filter Housing 1/4 or 1/2

Materials 316L Stainless Steel

Pressure 100 Bar

Ports 1/4 or 1/2”

Filter Disc FD.64

SW205 housings are designed to remove particulates from liquid samples. The inlet port is angled to create a 'cyclone' effect against a flat stainless steel filter disc. The sample passes through the filter to the outlet and the rest of the sample passes to the bypass port. The housing design allows a quick change of the filter disc as all the line connections are arranged in the body of the housing and the threaded cap means no tools are required for access. Standard housings have NPT ports and include Viton seals. Other seals types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75.

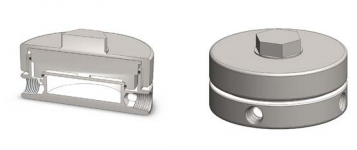

Cyclone Disc Filter Housing
  Port Size Drain/Bypass Port Max
Ordering Information NPT Port W/P
Inch Inch Bar
SW205-221 1/4 1/4 100
SW205-441 1/2 1/2 100
