10 Bar Filter Housing 1/4 or 1/2 – AN232

Materials Aluminium & Polyamide

Pressure 10 Bar

Ports 1/4” or 1/2”

Element 25.127 & 25.178.

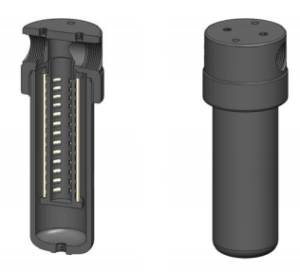

AN222 & AN232 series filter housings have an anodised aluminium head with polyamide bowl and internals. They are supplied with 1/4" or 1/2" ports and have a range of drain options. These housings are suitable for compressed air systems and general filtration applications. Standard housings have NPT ports and Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available.

Filter Housing
  Port Size Drain Max
Ordering Information NPT NPT W/P
Inch Inch Bar
AN232-201 1/4 None 10
AN232-221 1/4 1/4 10
AN232-261 1/4 Manual 10
AN222-271 1/4 Automatic 10
AN232-401 1/2 None 10
AN232-421 1/2 1/4 10
AN232-461 1/2 Manual 10
AN222-471 1/2 Automatic 10
