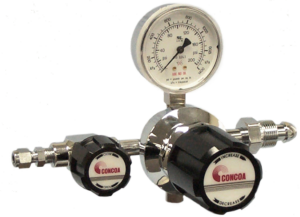

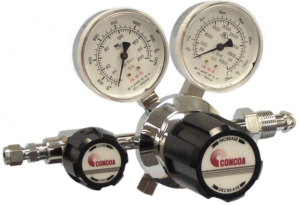

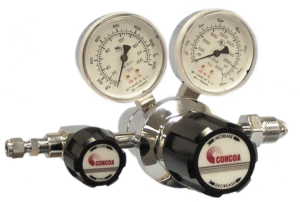

213 Series, Dual Stage, Chrome-Plated Forged Brass Body, 316L Stainless Steel Diaphragm, 5 Port Configuration

The 213 Series regulators deliver non-corrosive, high purity or liquefied gases (up to grade 4.5) for applications requiring constant low pressure control and delivery regardless of supply pressure variations. With delivery pressures as low as 0.1 PSIG (7 mBAR) that can be adjusted in 0.05 to 0.1 PSIG (4 to 7 mBAR) increments in two delivery pressure ranges, the 213 satisfies any high purity application requiring atmospheric pressures below 5 PSIG (350 mBAR).

• Dual Stage

• Chrome-Plated Forged Brass Body

• 316L Stainless Steel Diaphragm

• Five Port Configuration

Typical Applications

Low pressure inert blanketing of chemicals and fuel tanks

Gas supply purging

Gas system charging

Fuel gas supply control

Calibration gas control
